Alitherm 600 Aliminium Windows
Alitherm Series of windows offer a range of high quality glazing solutions for side hung, top hung open out, top swing reversible and parallel opening casements, suitable for both the residential and commercial markets.
The series features products that achieve;
- Window Energy Rating A
- BRE Green Guide A
- U Values up to 1.2 W/m2K depending on system and glass unit
- Includes the Kitemarked systems Alitherm 600 and 800 PAS 24:2012 Security
This versatile range of profiles can provide many solutions such as traditional casement windows inspired by the elegance and styling of timber products, or automatic parallel opening commercial windows designed to provide a balance airflow in multi-storey commercial buildings.

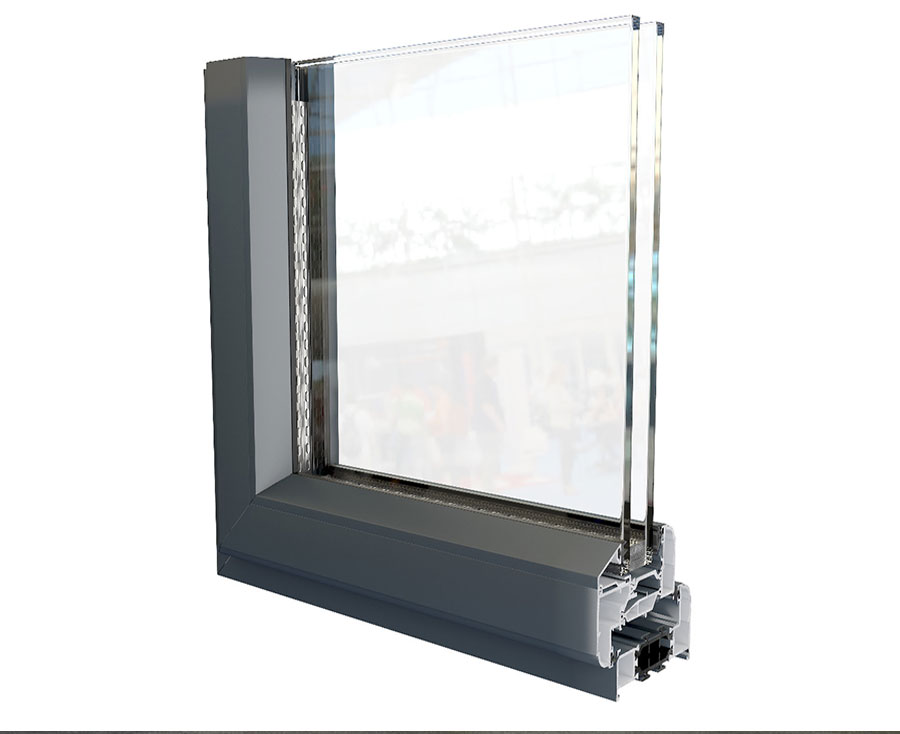

All Alitherm profiles utilise Smart’s innovative polyamide thermal break technology which creates a barrier between the cold air outside and the warm air inside. The technology significantly reduces thermal transmittance and enhances the overall U Value of a product.
- Description
- Specifications
- Performance
- Dimensions
This versatile range of profiles can provide many solutions for residential and light commercial applications. It can create traditional casement windows inspired by the elegance and styling of timber products, or contemporary style windows designed for modern homes or offices.
Alitherm profiles utilise Smart’s innovative polyamide thermal break technology which creates a barrier between the cold air outside and the warm air inside. This technology significantly reduces thermal transmittance and enhances the overall U Value of a product and is designed to meet the exacting requirements of Document L 2010.
Alitherm products are available in a choice of standard or non-standard colours, including metallic, dual colour, Smart’s Sensations textured, and Alchemy anodised effect finishes.
- British Standard Kitemarked system KM 81580 KM 81543
- An enhanced system designed to comply with the revisions to the Building Regulations
- Document L compliant
- System can achieve Window Energy ‘B’ Rating
- Profiles feature an extended polyamide thermal break to enhance thermal performance
- Fabrication is by method of crimped or mechanical corners• Ovolo, chamfered or square profiles
- Brand ...... Alitherm
- Material ...... Aluminium Polyamide
- Dual Colour ...... Yes
- Thermally Broken ...... Yes
- NBS Available ...... Yes
- WER Rating ...... B
- U Value ...... 1.3W/m²K (using correct glass unit)
- Document L Compliant ...... Yes
- Kitemark ...... Yes
- BS 6375-1:2009 ...... Yes
- BS 7950:1997 ...... Yes
- BS 4873 ...... Yes
- Side Hung Max Width (mm) ...... 1000
- Side Hung Max Height (mm) ...... 1400
- Top Hung Max Width (mm) ...... 1400
- Top Hung Max Height (mm) ...... 1500
- Glazing (mm) ...... 28mm to 38mm double or triple glazed units
- Frame Depth (mm) ...... 59mm & 70mm
