Visofold 3000 Patio Door


Visofold 3000 offers elegant slim sightlines coupled with highly engineered hardware designed to ensure years of reliable service.

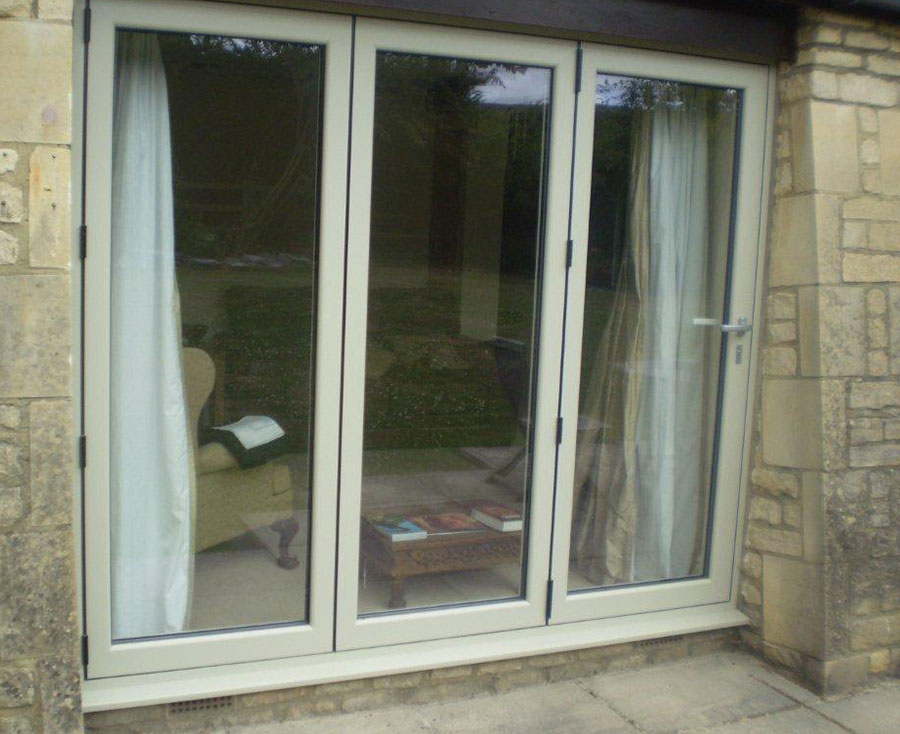

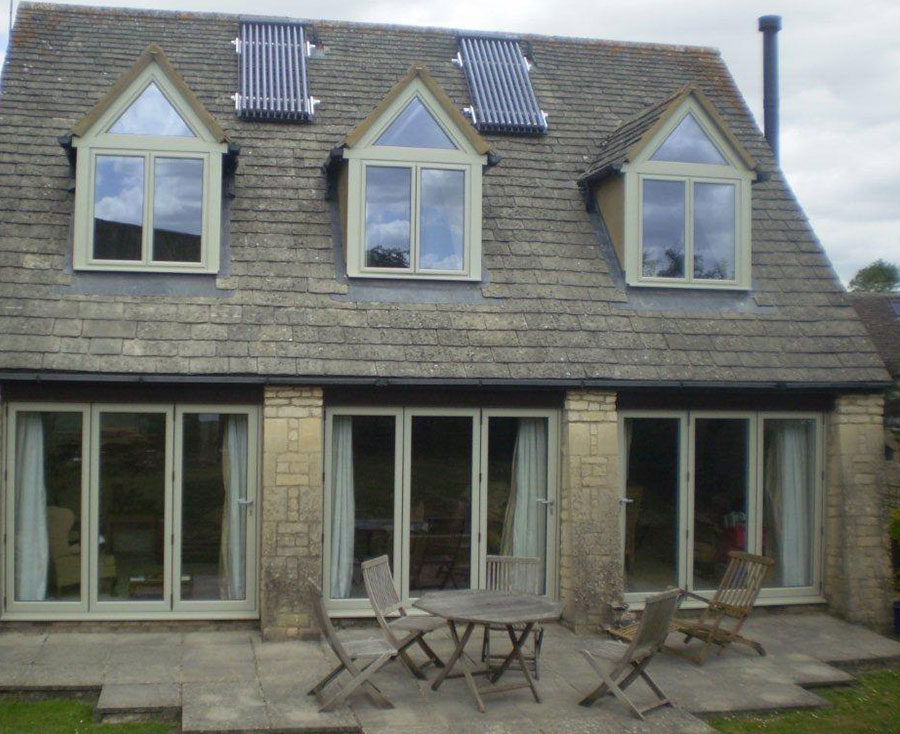

Visofold can be used in domestic applications as either an alternative to sliding doors, or to open up an entire wall as part of a conservatory; the system will make the most of a beautiful view or bring a garden into the home.

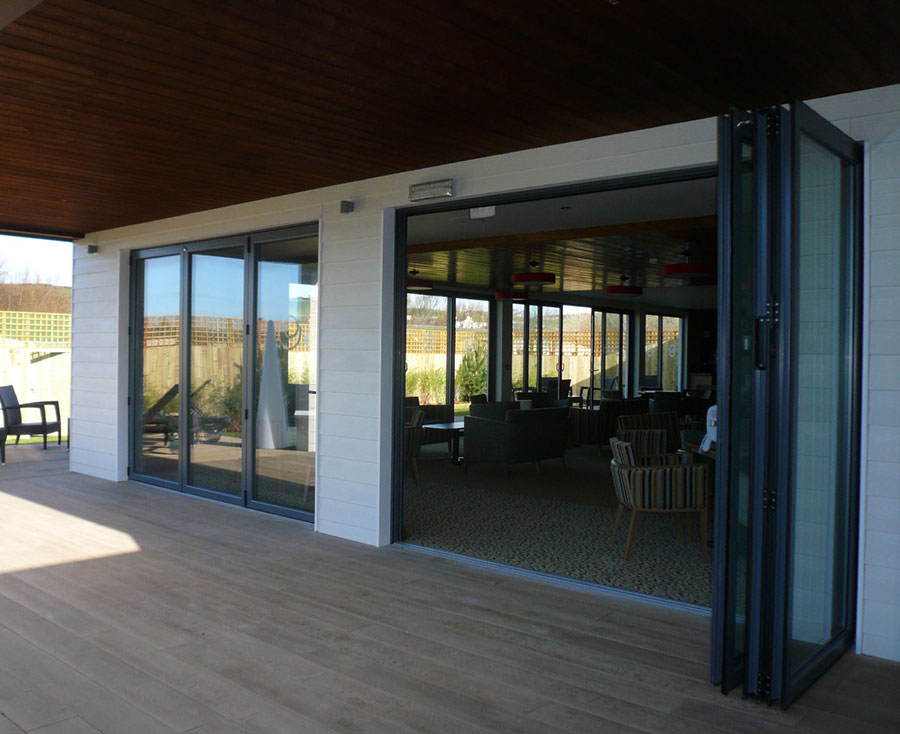

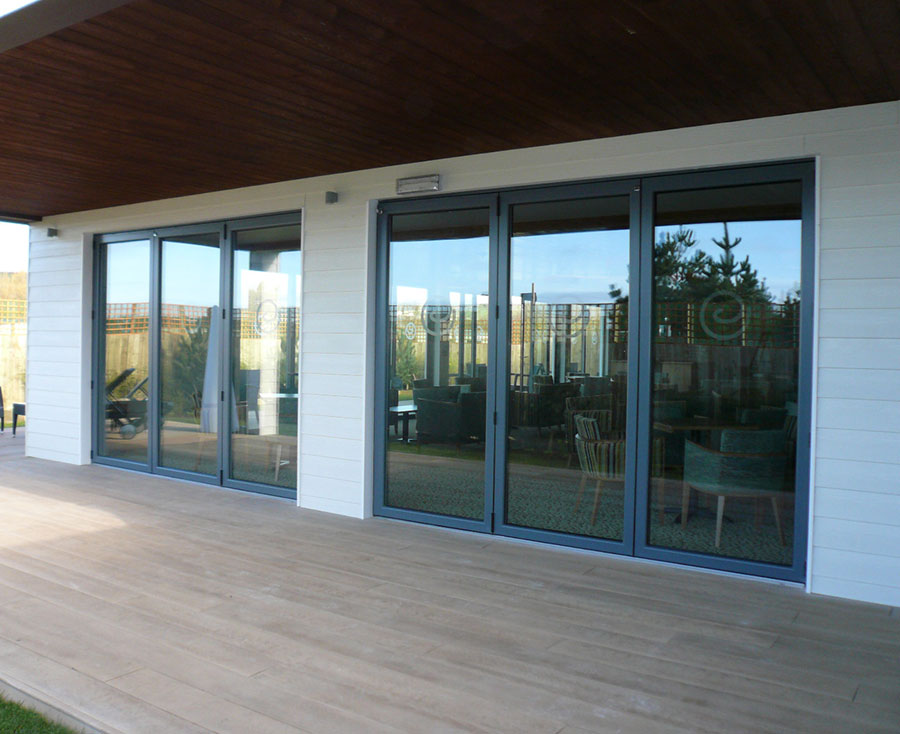

Used commercially in a bar, café or restaurant, Visofold can create a glazed screen that allows in the maximum ingress of light in inclement weather, and will also easily glide to open up an entire wall in warmer weather. Visofold doors offer a choice of opening configurations to suit any application. Choose to fold the sashes internally or externally, place the opening at the side so the sashes all fold one way, at one end, to create a single entrance door for easy access, or in the middle to give the option of a double door.

  • Description
  • Specifications
  • Performance
  • Dimensions

All Visofold profiles feature a polyamide thermal break that enhances the thermal performance of the profile and improves the overall U-Value. Profiles feature EPDM high quality gaskets and weather brushes to aid weather resistance. Visofold complies with the requirements of Building Regulations Document L 2010. Security is assured by multi-point lock mechanisms on main opening sashes, and shoot-bolt locking on floating mullions.

All Visofold doors have the option of either low thresholds for unimpeded, easy access, or rebated thresholds that offer improved weather resistance. Visofold doors are available in a choice of standard or non-standard colours, including metallic, wood-structure, dual colour and Smart’s unique Sensations range of textured finishes.

  • Visofold 3000 offers elegant slim sightlines coupled with highly engineered hardware designed to ensure years of reliable service
  • Slim sightlines allow more light into the building and give a pleasing appearance
  • Attractively styled round or square edge profiles and highly engineered and robust hinges
  • Specially designed stainless steel rollers give smooth and easy operation
  • Domestic lift-up style handles
  • Fabricated using mitred corners
  • Manufactured using Smarts punch tooling
  • Brand ...... Visofold
  • Material ...... Aluminium Polyamide
  • Dual Colour ...... Yes
  • Thermally Broken ...... Yes
  • NBS Available ...... Yes
  • U Value ...... 1.6W/m²K using 1.0 centre pane
  • Document L Compliant ...... Yes
  • BS 6375-1:2009 ...... Yes
  • Slide Folding Door Max Width (mm) ...... 1000mm (per sash)
  • Slide Folding Door Max Height (mm) ...... 2500mm (per sash)
  • Slide Folding Door Max Weight (kg) ...... 100kg
  • Glazing (mm) ...... 28mm double or triple glazed unit
  • Frame Depth (mm) ...... 70mm
  • Typical Sightlines (mm) ...... 154.2mm
